DKIM uses a combination of public and private keys to sign and verify email messages. When an email message is sent, the sender's mail server adds a digital signature to the message using a private key. This signature is a unique code that is generated using a mathematical algorithm, and it is based on the contents of the message.

When the recipient receives the email message, their mail server uses the sender's public key to verify the signature and ensure that the message has not been altered in any way. If the signature is valid, the recipient can be confident that the message is authentic and came from the sender.

You must set up custom DomainKeys Identified Mail (DKIM) authentication for your domains. It will ensure your emails reach your recipients’ inboxes and they will appear as sent through your branded emails and not from AiTrillion emails.

• GoDaddy
• Shopify
• Google

It is a form of email authentication that allows an organization to claim responsibility for a message in a way that can be validated by the recipient.

Note:  Please remember that to configure DKIM, you need to have a professional email service (e.g. yourname@yourwebsiteurl.com ). Free email services provided by Gmail / Yahoo / Microsoft etc will not work, even if one of these is used by your business for professional purposes.

Workflow

You can set up the DKIM settings in the app by following the below steps:

Step 1.  Login to AiTrillion.

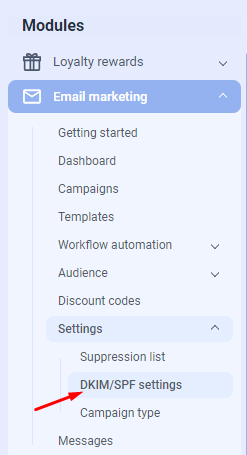

Step 2. Go to the DKIM Settings page under email marketing and settings.

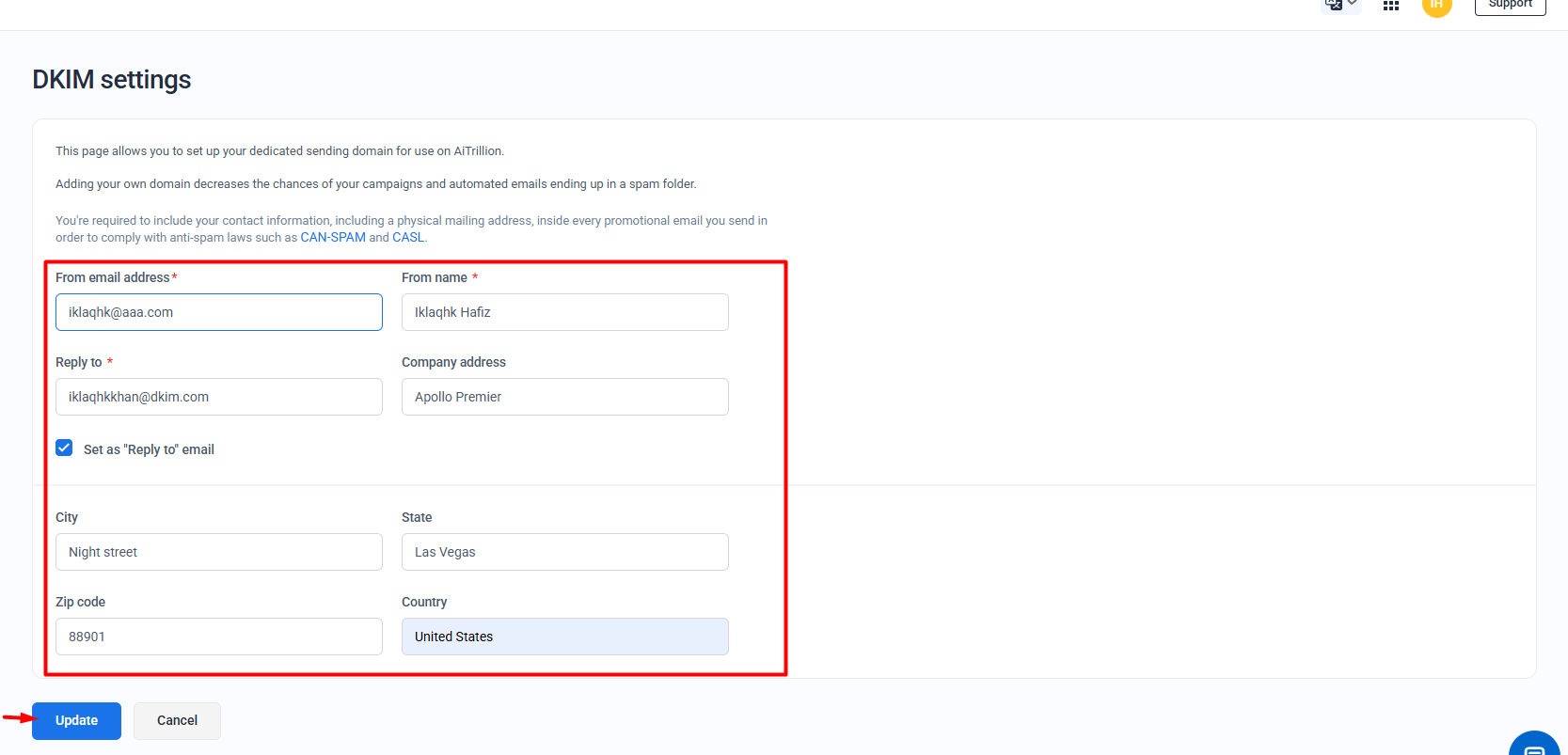

Step 3. A page will appear, fill in the details, and click on the  Save button.

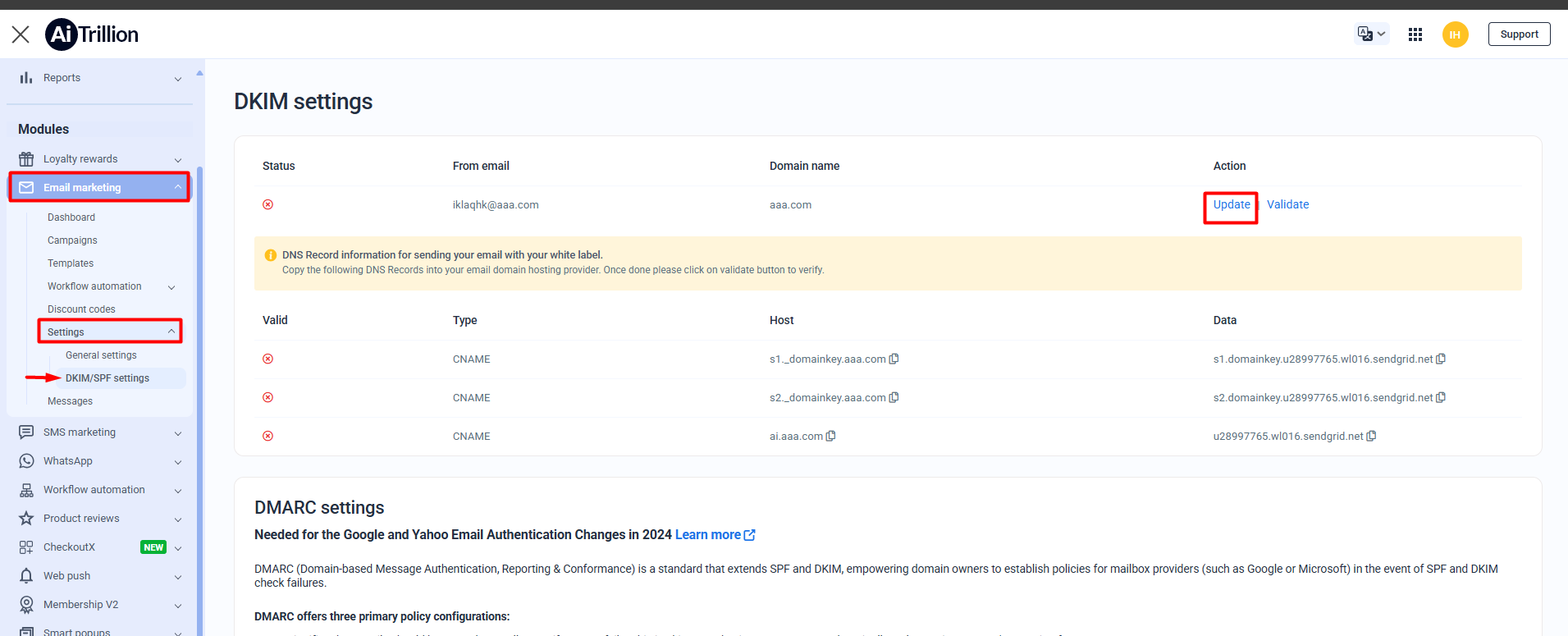

Then a popup will appear with the below details, you need to do these CNAME entries in your domain hosting provider account.

Note : If you don’t have a domain-associated email address then you can get one from any email hosting provider. Find a list of the most popular email hosting providers below.

1. GoDaddy
2. NameCheap

Step 5.  Add the following DNS records to your domain hosting provider account.

Check the following 3 CNAME records to set up your dedicated sending domain:

Type	Hostname	Value
CNAME	s1._domainkey	s1.domainkey.u8130067.wl068.sendgrid.net
CNAME	s2._domainkey	s2.domainkey.u8130067.wl068.sendgrid.net
CNAME	ai	u8130067.wl068.sendgrid.net



Follow the below steps to set up the DKIM (add the CNAME entries) in the different hosting providers.

GoDaddy

A).  Log in to your  GoDaddy  account.

B).  Click on this URL –  https://account.godaddy.com/products

C).  Click on  DNS

D).  In the next screen click on  Add  to add the CNAME entries.

E).  Fill in the details in the form and click on the  Save  button.

Note:  You need to do three CNAME entries given below.

Type – CNAME

Host – s1._domainkey

Points to – s1.domainkey.u8130067.wl068.sendgrid.net

TTL – 1 Hour

—————————

Type – CNAME

Host – s2._domainkey

Points to – s2.domainkey.u8130067.wl068.sendgrid.net

TTL – 1 Hour

—————————

Type – CNAME

Host – ai

Points to – u8130067.wl068.sendgrid.net

TTL – 1 Hour



F).  Once you are done with all 3 entries then click on  Validate .

Shopify

A).  Log in to your  Shopify Admin .

B).  Go to  Online Store > Domains

C).  Click on  Manage .

D).  Click on  DNS settings .

E).  Click on  Add custom record  then select  CNAME record .

F).  Fill in the details in the form and click on the  Confirm  button.

Note:  You need to add three CNAME records as given below.

Name – s1._domainkey

Points to – s1.domainkey.u8130067.wl068.sendgrid.net

—————————

Name – s2._domainkey

Points to – s2.domainkey.u8130067.wl068.sendgrid.net

—————————

Name – ai

Points to – u8130067.wl068.sendgrid.net



G).  Once you are done with all 3 entries then click on  Validate .

Google

A).  Go to  https://domains.google.com/

B).  Click on the  My Domains  button in the top right corner.

C).  Click on the  Sign in  button in the top right corner.

D).  Click on  DNS  in the left side panel.



E).  Scroll below and go to the  Custom resource records  section.

F).  Fill the details in the form and click on  Add .

Note:  You need to add three CNAME records as given below.

@ – s1._domainkey

Domain name – s1.domainkey.u8130067.wl068.sendgrid.net

—————————

@ – s2._domainkey

Domain name – s2.domainkey.u8130067.wl068.sendgrid.net

—————————

@ – ai

Domain name – u8130067.wl068.sendgrid.net

G).  Once you are done with all 3 entries then click on  Validate .

Overall, DKIM is an important security protocol that helps to protect email messages from being forged or modified in transit. It can help to prevent phishing attacks and other forms of email fraud, and it can provide an additional layer of security and trust for online communications.
