Responsive control for images

Responsive control for images

Introduction

In this article, you will learn about image adaptivity, when it's best to use it, and how to turn it off for an image. AiTrillion's templates support @media queries that allow you to adapt your template's content to the mobile device's layout, facilitating usability and navigation as well as good display.


How to make images responsive?

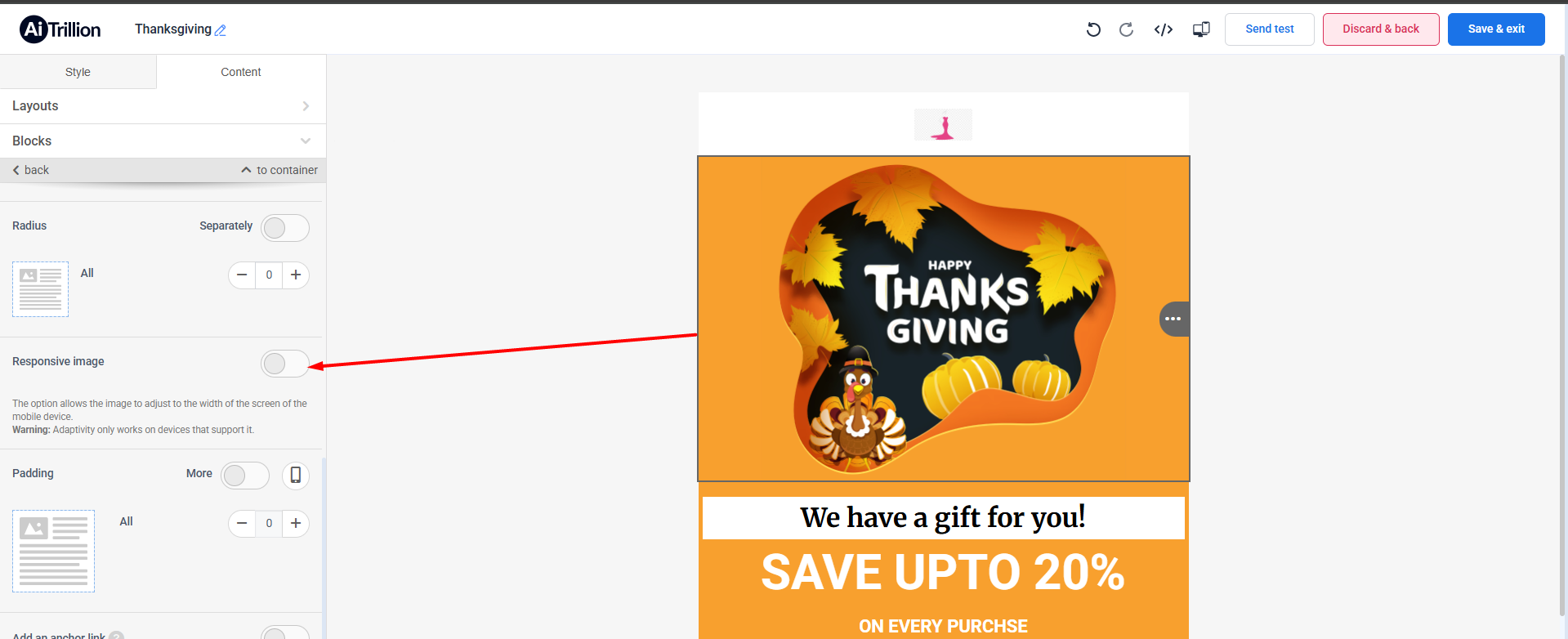

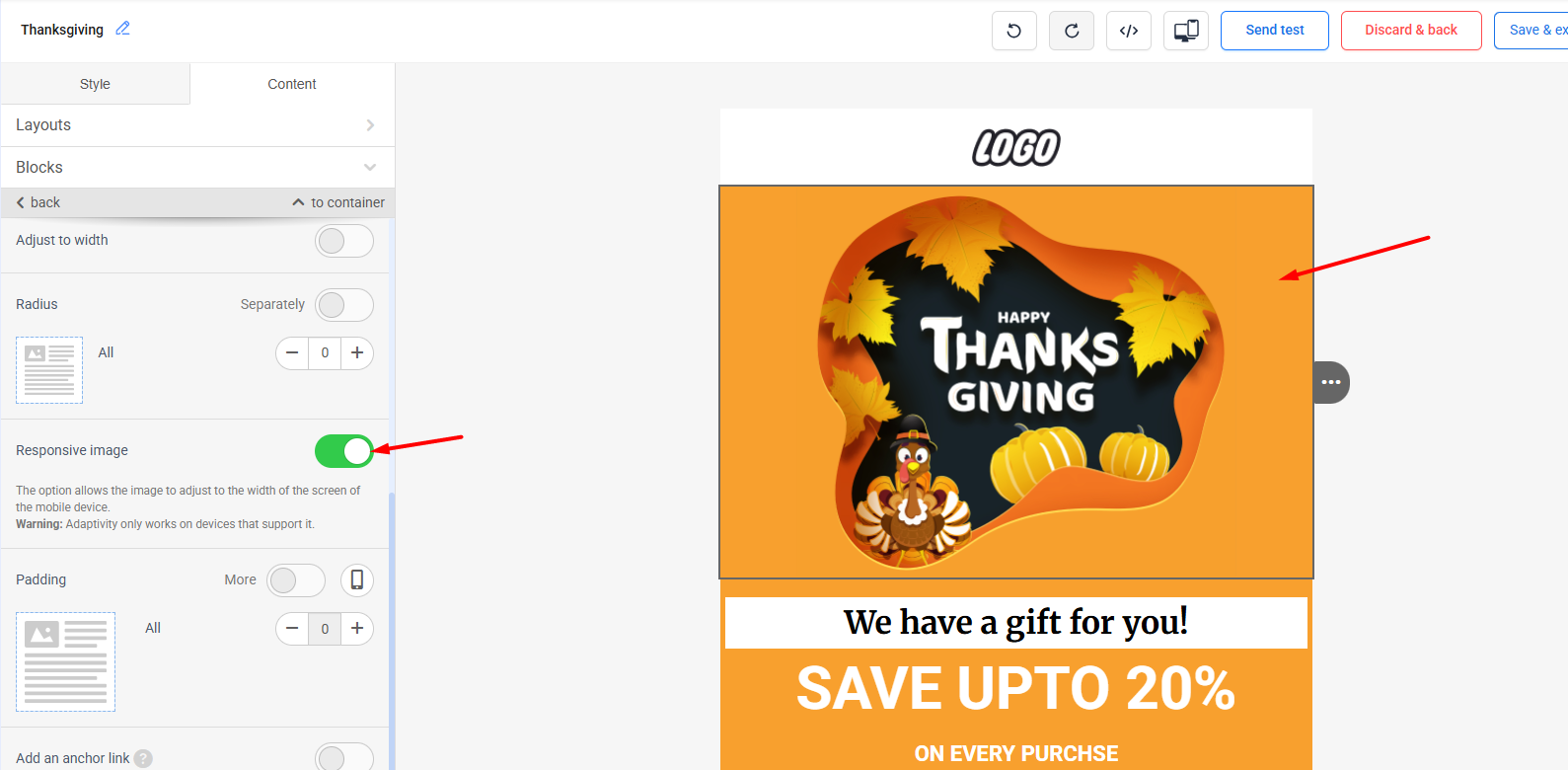

You can make your image responsive/adaptive by turning on the control "Responsive image":






Let's consider an example:

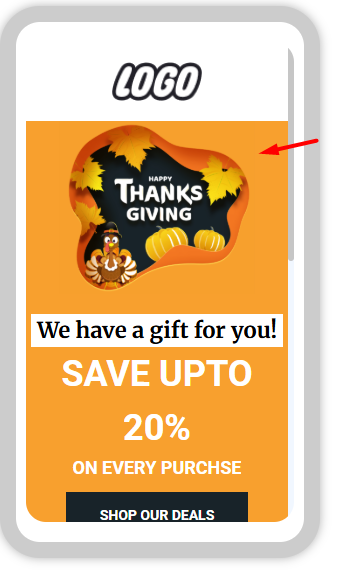

It means the image with its original size e.g. 601x397, will be adapted and fully displayed on a mobile screen.





In AiTrillion preview mode, we display templates on mobile with a screen width of 320px.

The "Responsive image" control helps you adapt all images with a width greater than the mobile device's screen width.

Please be advised that if you keep the "Responsive image" control turned off for the huge image:

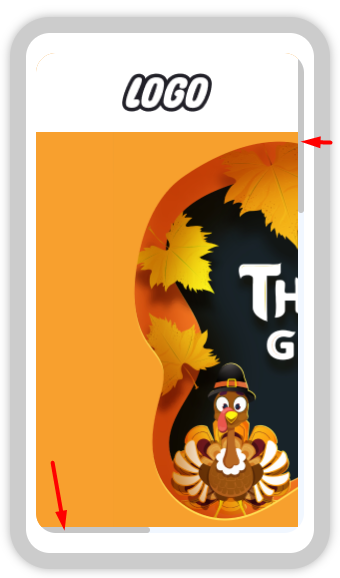

You will see a stretched mobile layout, and a horizontal scroll appears then.


Does responsiveness work with background images?

Background images can't be responsive to mobile layouts because they always have their own original size. So you will see the background image's exact part on the mobile view that covers a container, structure, or stripe.



Tips:

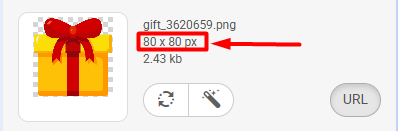

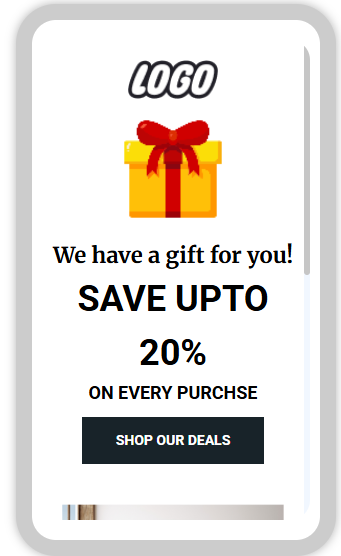

1. If you have small images or logos (20px, 60px, 100px, etc.), you can turn off the "Responsive image" control so the original image size will be displayed on mobile view.

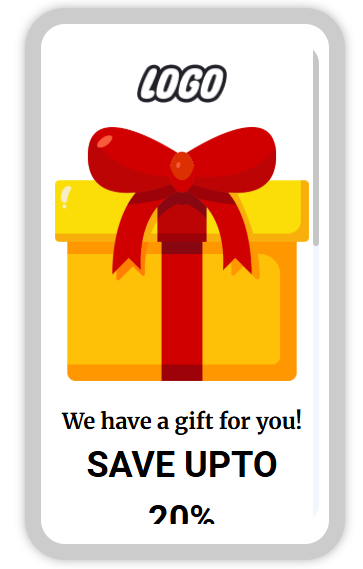

The result with the "Responsive image" tool turned on:



2. You can add the gradient as a background of your element in case the background image doesn't work properly on mobile.

You can generate the gradient using this service and paste it into your element.

Let's try to apply this linear gradient to a structure as an example:

  1. background: linear-gradient(90deg, rgba(63,94,251,1) 0%, rgba(252,70,107,1) 100%);



The result on mobile view:
